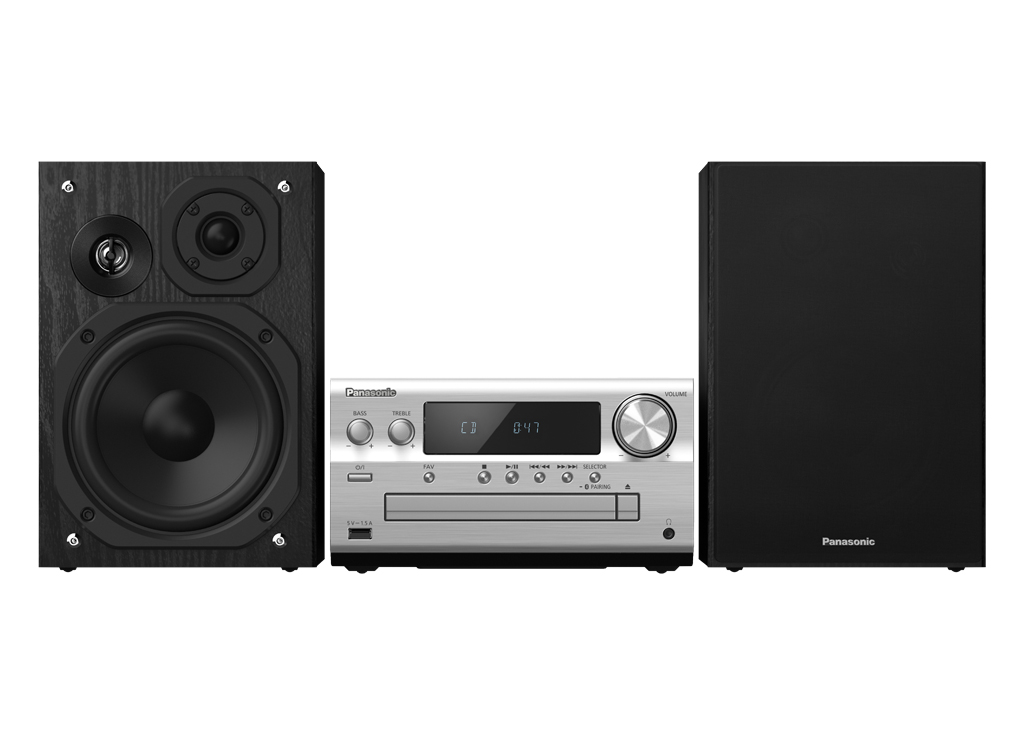

SC-PMX802 Premium Hi-Fi System with DAB, CD & Hi-Res Streaming
Features unique technics Hi-Fi technology for premium sound
High performance audio parts
Versatile network audio player with Hi-Res capability
Clear and dynamic sound – beautifully realised
AUX-IN auto play for TV sound perfection
Features Technics’ JENO Engine for faithful sound reproduction
Carefully selected components ensure you get the most out of Hi-Res audio sources
Chromecast built-in, AirPlay 2 and Bluetooth® for wireless versatility
Dynamic 3-way speakers with silk dome tweeters reaching up to 50 kHz
Enhance CDs, MP3s and Bluetooth® audio with Re-master functions
Simple AUX-IN Auto Play functionality enables control with your TV remote
Amplifier | |
Amp Type | 2ch Amp (JENO Engine) |
RMS Output Power | |
Total RMS Stereo Mode Power | 120W |
Front Speaker (Left / Right) | 60W + 60W (1 kHz, THD 10%, 3Ω) |
Front Speaker (Left Right) | |
Type | 3 Way, 3 Speaker System |
Speaker Unit (Woofer) | Bamboo Charcoal PP 14 cm |
Speaker Unit (Tweeter) | Silk Dome Tweeter 1.9 cm |
Speaker Unit (Sup. Tweeter) | Piezo Tweeter 1.5cm |
Bass Expand | Bass Reflex Port |
CD | |
Playback Disc *¹ | CD-R / RW |
Format | CD-DA / MP3 |
Internal Memory | – |
USB | |
Playback | Yes *² |
USB Standard | USB 2.0 High-speed |
Playback Format | |
DSD | Yes (2.8MHz, 5.6MHz) |
WAV, AIFF | Yes (up to 192kHz / 24bit) |
FLAC | Yes (up to 192kHz / 24bit) |
AAC | Yes (up to 48kHz / 320kbps) |
MP3 | Yes (up to 48kHz/320kbps) |
Battery Charge | Other portable device (1.5 A) |
USB-DAC function | |
Playback Format | DSD(2.8MHz, 5.6MHz) WAV, AIFF: up to 192k / 24bit FLAC: up to 192kHz /24bit MP3: up to 48kHz / 320kbps |
Player Application (Windows / Mac OS) | Yes |
Station Presets | |
FM | 30 Stations (87.5〜108MHz (50K step)) |
DAB Plus | 20 Stations (174.928〜239.2MHz) |
Radio Data System | Yes |
Auto Tuning | Yes |
Auto Preset | Yes |
Antenna Terminal | 75 ohm unbalanced |
Bluetooth® | |
Version | Ver.4.2 |
Class | Class 2 |
Function | Wireless audio playback / Remote control |
Codec | SBC / AAC |
Connectivity | Multi-Pairing (MAX 8 Devices) |
Bluetooth Standby | Yes |
Wi-Fi | |
Wi-Fi *³ | Yes |
WLAN Standard | IEEE802.11a/b/g/n/ac |
Frequency Range | 2.4GHz band / 5GHz band |
DLNA | Yes |
AirPlay | Yes (AirPlay 2) *⁴ |
Chromecast built-in | |
Chromecast built-in Speaker grouping | Yes |
Chromecast built-in Multi-zone | Yes |
Chromecast built-in Stereo Pair | – |
Chromecast built-in Wireless surround | – |
Compatible with Google Assistant | Yes |
works with Alexa | – |
StreamUnlimited | |
SDK | Yes |
Multi-room = Party Mode | – |
Multi-zone | Yes |
Re-transmission | – |
Stereo Pair | – |
Favourite Button | |
Main Unit | FAV |
Remote | FAV, 1-9 |
AUX-In Auto Play | Yes (for 3.5mm Stereo mini input) |
NFC | – |
Smartphone App | |
Panasonic Music Control App *⁵ | Yes (iOS / Android) |
Online Music Services | |
Spotify Connect | Yes |
Airable | Yes (Internet Radio, Podcasts, TIDAL, Deezer) |
Sound Function | |
Super Sound EQ, Super Bass Sound | D.Bass |
EQ | |
Preset EQ | 4 Preset |
Manual EQ | Bass / Treble (±4) |
Surround | Yes |
Karaoke | – |
My Sound Setting | – |
Clear-mode Dialog | – |
XBS Master | – |
High-Res AUDIO | Yes |
Re-Master | |
CD High-Res Re-Master | Yes |
Bluetooth Re-Master | Yes |
MP3 Re-Master | Yes |
USB Re-Master | – |
Streaming Re-Master | – |
Terminals | |
USB Port | USB Type-A x1 / USB Type-B x1 |
Audio IN | RCA Pin Jack (AUDIO IN) / 3.5 mm Stereo mini (AUX IN) / Opt-In (for LPCM) |
Audio OUT | Phones (3.5 mm) |
Mic Jack | – |
Speaker Terminal | Screw Type |
LAN | Yes |
General | |
Power Supply | AC 220 – 240 V, 50 Hz |
Power Consumption ⁶ | |
Normal Use | 43 W |
Network Standby Off | 0.4 W |
Network Standby | 2 W |
Display Type | FL (Union Jack) |
Language Indication | Alphabet |
Dimmer | Yes |
Auto OFF | Yes |
Timer | |
Sleep | Yes |
Clock | Yes |
Play Timer | Yes |
Rec Timer | – |
Dimension | |
Main Unit (W x H x D) | 211 x 114 x 267 mm |
Speaker Unit (W x H x D) | 161 x 238 x 262 mm |
Weight | |
Main Unit | 2.9 kg |
Speaker Unit | 2.6 kg |
Color | Silver |
Accessories | |
Remote Control | Yes |
Dry Batteries for Remote Control | Yes |
AC Cord | Yes (1.5 m) |
Speaker Cable | Yes (1.2m, AWG22, White) |
Operating Instruction | Yes |
Quick Start |
